Transmitter

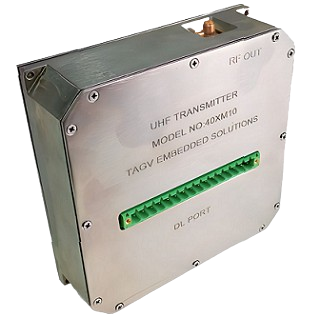

UHF Insat Transmittor

Manufactured in India, by TAGV Embedded Solutions Pvt Ltd, an ISO 9001 company. This INSAT Transmitter provides long-term, reliable operation even in the harshest climate. TAGV’s UHF INSAT Transmitter provides reliable TDMA burst transmission for Metrological and Hydrological station applications.

Features :

Programmable power and frequency
Excellent long-term stability
Low power consumption
Wide supply voltage range
Easy integration
Custom transmission format
Suitable for onsite deployment in any environment
IMD certified

INSAT UHF Transmitter Specifications

Carrier Frequency Band
402.0 MHz to 403.0 MHz
Carrier Set ability
In steps of 100 Hz from 402.0 MHz to 403.0 MHz
Modulator
PCM/BPSK
Power Output
3 to 10 watt user settable
Power Stability
±1 dB
Data Range
4.8 Kbps
Data Coding
NRZ(L)
Signal Bandwidth
6.0 KHz Maximum or better
Spurious
-60 dB or better
Harmonics
-40 dB or better
Environmental Operating
-20°c to +60°c
Relative Humidity
0 to 100%
Antenna cable (Recommended)
LMR 400 or Better
Operating Voltage
+12V DC, Switched by Data logger
Performance
Data Reception availability 99% or better
Satellite System
INSAT operated by ISRO
Certification
IMD

Frequency Stability

  1. Long Term:
    Transmit frequency inaccuracy including aging of oscillator will not exceed ±400 Hz per year. Provision available to adjust the long term drift.
  2. Over Temperature Range:
    ±1ppm or better (-40 to +55°C)
